[original 4 May 2024] | 12 min read

Project no longer maintained

The IMatch to Socials project has been superseded by IMatch to Site. The information below is mostly accurate with respect to the final code base on Github, but may require some code inspection for features added in the last days. The repository contains additional code for Mastodon, and the seed for IMatch to Site.

The IMatch to Socials system automates the addition, update and deletion of images between IMatch and flickr or pixelfed. I created it to reduce the time taken updating and managing photos across all three platforms.

Features

  • Uses metadata directly from the IMatch database and formats it (to my liking) for sharing with others.
  • Processes photos from a dedicated “Socials” category within IMatch and adds any new photos to the matching social platform.
  • Updates photos flagged for update.
  • Deletes photos flagged for deletion.
  • When the target platform is flickr, adds/removes the photo from albums and groups.
  • When the target platform is pixelfed, provides alt-text alongside the photo.
  • Can be run as an IMatch app for processing without leaving IMatch.

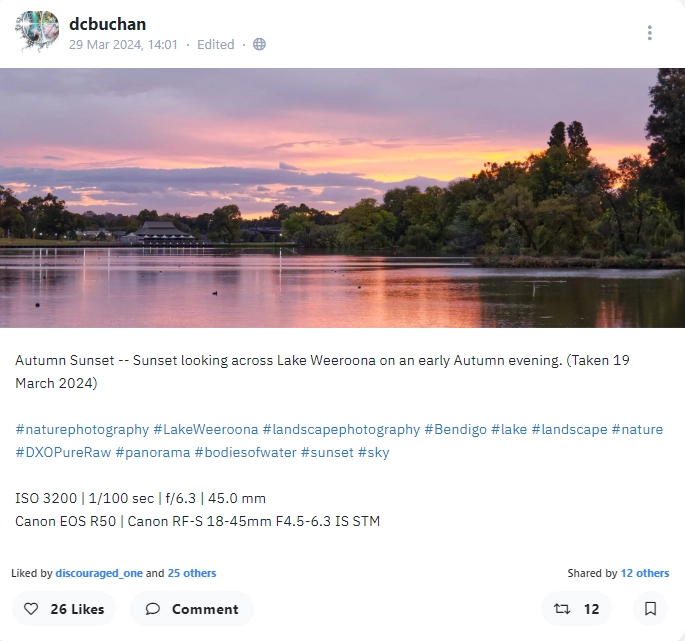

Sample of automatically generated information for Pixelfed

link

Platform actions

flickr

  • Add
    • Upload image
    • Set title and description (image alt-text added to description)
    • Set date taken
    • Set keywords
    • Add to album(s)
    • Add to group(s)
  • Update
    • Replace image
    • Set title and description
    • Set date taken
    • Add to/remove from albums(s)
    • Add to/remove from groups(s)
  • Delete
    • Delete image (automatic removal from albums and groups)
  • Typical error conditions - mean add/update/delete won’t happen
    • Missing title or description
    • Photo size > 200MB

pixelfed

  • Add
    • Upload image
    • Set title, description and image alt-text
  • Update
    • Set title, description and image alt-text
  • Delete
    • Delete image
  • Typical error conditions - mean add/update/delete won’t happen
    • Missing title, description or headline (for alt-text)
    • Photo size > 15MB

Installation and Configuration

Set up Code Environment

For this system to run you need:

  • Experience with code. I cannot emphasise this enough. I have taken steps to automate and bullet-proof this system as much as I can and as much as I need for my own purposes. It may not be right for you. The system modifies data and deletes data.

It is your responsibility to test how this system works for you and to support that testing with adequate backups for your needs.

Get Your Application Keys

Create application keys and record the keys and secrets you’re given. These will go into IMatch application variables.

You do not need to set up both platforms if you are using only the one. However, you will either need to modify share_images.py or call the Python script with a ‘flickr’ or ‘pixelfed’ argument. This is what the Configure IMatch App does.

Create IMatch Application Variables

To remove private information from the code, and to allow for quick changes, the system uses IMatch Application Variables for configuration.

VariableValue
flickr_api_keyYour personal flickr API key
flickr_api_secretYour personal flickr API secret
flickr_is_family1 = set, 0 = unset
flickr_is_friend1 = set, 0 = unset
flickr_is_public1 = set, 0 = unset
flickr_urlURL to your flickr photos without a trailing slash. Mine is https://www.flickr.com/photos/dcbuchan
imatch_to_socials_python_script_pathPath to where you have installed the code
imatch_to_socials_testing1 = test, 0 = live
pixelfed_tokenYour personal pixelfed app token
pixelfed_urlURL of your pixelfed site. Mine is https://pixelfed.au
pixelfed_visibilityPixelfed image visibility (public, unlisted, private, direct)

There is some configuration in config.py but this is more generic.

You could move these variables to application variables if you wanted (or vice-versa).

The privacy values effect new images only.

You may want to hide images during testing. You can manually change them in the platform later on if needed, or delete and upload again.

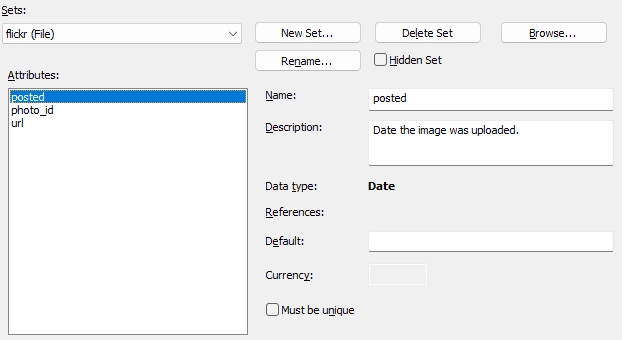

Create IMatch Attributes

IMatch Attributes are a way of attaching non-image metadata to an image within IMatch. They are stored only in the database and never saved to the image file. This system uses them to tag if a photo has been uploaded and provide some information about that.

It does not matter what the information stored is. All that matters is the existence, or not, of an attribute per platform with at least the id of the photo on the target platform.

SetNameTypeMust be UniqueDesc.
flickrpostedDateNoDate the image was uploaded
photo_idTextYesUnique photo id on flickr
urlHyperlinkYesDirect link to photo’s page (created from flickr_url application variable above)
pixelfedpostedDateNoDate the image was uploaded
media_idTextYesUnique photo media id on pixelfed
status_idTextYesUnique text id on pixelfed
urlHyperlinkYesDirect link to photo’s page

On pixelfed, the “post” that you see is the status. The attached photo is the media.

Manually Deleting

If you delete the attribute record for an image, it will be uploaded on the next run. This could cause duplicates on your platform but is useful when testing.

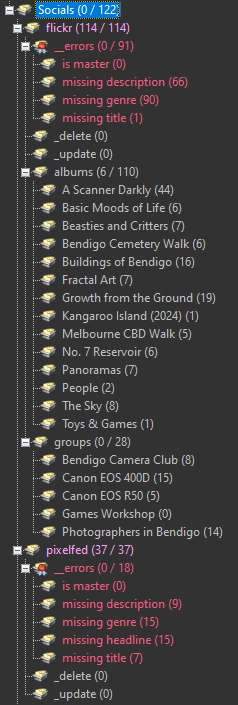

Create IMatch Categories

The steps are simple. Create a version of an image, and add that image to a category the script recognises and press go. The structure I have is root|platform|actions, errors and filing.

  • Socials is defined in config.py as ROOT_CATEGORY
  • The second level categories are the platforms. This must match the name given in the PlatformController subclasses’ __init__ function and be consistently used.
  • __errors is defined in config.py and has a sub-category for each error type.
  • _delete and _update are self-explanatory. Images assigned to these categories are deleted or updated. Defined in config.py
    • An image in both will cause and error. Images are removed from these categories once the action is taken. Therefore:
      • For update, an image should be in both the platform and update category
      • For delete, an image should only be in the delete category.
  • flickr also has albums and groups, These can be named anything, but obviously should match the flickr names. More important is to have the album or group identifier stored in the category’s description. For example, the Toys & Games URL is https://www.flickr.com/photos/dcbuchan/albums/72177720316352529/ with an ID of 72177720316352529. That is shown in the category description.

Tag images for upload

You need a master and a JPEG version for each image. The master holds the metadata and the JPEG version is the image that will be upload.

Tag the master as the image you want to update by adding it to the root of the flickr or pixelfed categories created in the previous step.

The script will find the first JPEG version and upload that, with metadata from the master.

Versions and Metadata

My location hierarchy is quite deep and runs to personal information (see Mediabank). I don’t want flickr to be creating keywords for my home address, but if the information is in the hierarchical keywords field in the uploaded file, it will so location and events information is stored in IMatch categories, outside of the keywords tree. The master image has all the keywords and versions have none.

Configure IMatch App

Advanced topic

This is an advanced topic that relies you understanding what the instructions I give below mean. It’s beyond the scope of this document to explain all the details.

The code can be run from the command line or from with IMatch using an IMatch app. Here’s how I set up mine.

  1. Close IMatch
  2. Place the GitHub code in a location of your choice. The IMatch app folder is the one we are concerned with.
  3. Create a symlink from the C:\ProgramData\photools.com\imatch6\webroot\user folder to the location of your IMatch App folder.
  4. Start IMatch. You should see the application registered.
  5. Point the imatch_to_socials_python_script_path application variable to the location where share_images.py is located.
  6. 🤞

Understanding the Code

Main Code Loop (share_images.py)

What does this actually do? The main script share_images.py is a Python script that controls the main processing loop. There is a platform_controller for each platform (flickr, pixelfed). These gather images from IMatch and connect to the respective platforms for the API calls. In the pseudocode below an “image” is all the metadata associated with an image in IMatch.

build platform_controllers
FOR EACH platform_controller
	get images from IMatch with direct membership in Socials|[platform] cateogry
	classify images into add, update, delete, error or no-action categories
	add new images
	update existing images
	delete images
	process errors
END FOR
display processing statistics

Classes

Most of the work is performed by 3 classes, with inherited versions for flickr and pixelfed.

IMatchImage (imatch_image.py)

Manages an images metadata

  • __init__ Pulls and stores common metadata from IMatch such as title, description, keywords and camera information. Traverses from the version in Socials to the master. flickr has a bad habit of creating keywords from personal information in the image file and try as I may, I can’t delete it. In my system I don’t propagate this information to the image version. Instead I use the code to get it from the master.
  • add_keyword formats keywords to remove spaces, replace & etc
  • camera_info makes some camera information consistent across devices.
  • is_image_in_category checks if an image, by it’s id, is in a category or not. Primarily used to check for updates and deletes.
  • is_master returns True if this is the master image and so an error
  • is_on_platform checks if image has attributes for the platform as this is the marker it it has been previously uploaded. Must be overridden by subclasses.
  • is_valid returns True if the basic validity is met eg. not a master, has a title and description, has genre keywords
  • is_version returns True if this is a version image
  • prepare_for_upload filters and parses keywords and categories, cutting them down to those I am happy to share publicly. Extended by subclasses.
  • shooting_info standardises the way ISO, shutter speed, aperture etc are displayed
  • wants_delete is this image in the _delete category
  • wants_update is this image in the _update category

An image in both _delete and _update is flagged as an error and neither action is taken.

FlickrImage (flickr.py)

Extends IMatchImage

  • is_valid flags an error if the image is > 200MB in size.
  • prepare_for_upload extends parent class function. Formats text for flickr. Populates the list of albums and groups the image should be in.

PixelfedImage (pixelfed.py)

Extends IMatchImage

  • is_valid flags an error if the image is > 15MB in size or if the ‘headline’ field is empty since this is used to populate the alt-text once uploaded.
  • prepare_for_upload extends parent class function. Formats text for pixelfed.

PlatformController (platform_base.py)

Manages a set of images, and the connection to the platform.

  • add_images sends each image to the subclass controller to add to the platform
  • classify_images adds images to buckets for add, update, delete and invalid handling
  • commit_add does the actual add to the platform. Must be overridden by subclasses.
  • commit_delete does the actual delete from the platform. Must be overridden by subclasses.
  • commit_update does the actual update on the platform. Must be overridden by subclasses.
  • connect makes a connection to the platform. Must be overridden by subclasses.
  • delete_images requests deletion for each image from the platform and then removes images from the _delete category. If the image is only in this category, it will be gone from Socials.
  • process_errors walk each subcategory of __errors and remove all currently assigned images from the last run, then add back all new errored (invalid) images
  • register_image creates a connection between an IMatchImage and the controller. Simplifies code.
  • stats is a small utility function to collate processing stats into a dict for easier display
  • summarise display a summary of the controllers image counts as assigned by classify_images
  • update_images does an update for each image on the platform.

Relationship between commit_[action] and [action]_images functions

There is strong relationship between each pairing functions. Those beginning with add, delete, and update iterate across the images and make a call to the commit function for each. The looping is common, but the calls to the final platform vary a lot.

The iteration function also test for config.TESTING. If this is true, the commit function is bypassed.

FlickrController (flickr.py)

Extends PlatformController

  • __init__ collects privacy variables from IMatch (see Create IMatch Application Variables below) and collects the album and group ids from the description field of the respective IMatch categories.
  • connect connects to flickr. First run will authenticate via browser.
  • commit_add adds an image to flickr in accordance with the privacy variables set. Adds the image to all albums and groups. Adds keywords as tags. Explicitly sets the date and time from the master metadata. Add attributes for the image so we know it’s been added in the past.
  • commit_delete deletes the image from flickr. The deletion proceeds without confirmation.
  • commit_update replaces the image, updates the description and keywords and syncs album and group membership.

PixelfedController (pixelfed.py)

Extends PlatformController

  • connect connects to pixelfed.
  • commit_add adds an image to pixelfed
  • commit_delete deletes the image from pixelfed. The deletion proceeds without confirmation.
  • commit_update updates the description and alt-text.

IMatchAPI (IMatchAPI.py)

Python wrapper for the IMatch API

Connects to IMatch which must be running for any of this to work. Contains API wrapper functions for only those functions needed. This is not Python for all of the calls that could be made.

See the code for details of each function. The basic process is to prepare all needed variables within the function, but allow for some to be passed in.

All functions are Python class functions.

IMatchUtility (IMatchAPI.py)

Support functions for IMatchAPI and other places where needed to do something specific for IMatch

  • build_category takes a list of category path elements and builds a valid category string
import IMatchUtility as iu

category = iu.IMatchUtility.build_category(['Socials','flickr','_delete'])
print(category) # Socials|flickr|_delete
  • prepare_filelist takes a single IMatch file id, or array of ids, and turns them into a comma-separated string for passing through to the API.
